How to Read Concrete Grades and Strength Ratings?
Reading concrete grades and strength ratings begins with understanding what the numbers actually measure. A label such as C25/30 or M30 is not decorative terminology. It identifies a specified compressive strength, usually measured in megapascals, after a standard curing period. The first number may describe cylinder strength, while the second can represent cube strength. Systems differ by country, so the same-looking grade should never be compared casually. Check the project specification.
A useful perspective comes from A.M. Neville, author of Properties of Concrete: “The strength of concrete is commonly considered its most valuable property, although in many practical cases other characteristics, such as durability and permeability, may be more important.” This warning matters when reading concrete on drawings, delivery tickets, or test reports. A 28-day result reflects a controlled sample, not every corner of a slab. Temperature, moisture, mixing, placement, and curing can change performance. Think of a freshly poured footing under a damp curing blanket, then compare it with a dry, cracked sample stored badly. The printed grade stays unchanged. The concrete does not.
This guide will explain strength classes, cube and cylinder ratings, test ages, and common symbols. It will also separate specified strength from actual test results. Some labels remain confusing, even for experienced readers. That is worth admitting. Numbers help, but context decides whether they are reliable. Careful reading connects the rating to the structure, the test method, and the conditions on site.
Understanding the Meaning of Concrete Grade Labels
Concrete grade labels are compact codes with practical meaning. A label such as C25/30 usually refers to characteristic compressive strength. The first number often describes cylinder strength. The second commonly describes cube strength. These values are measured in megapascals, or MPa.
Strength is normally assessed after 28 days of curing. A higher number indicates greater resistance to compression. It does not automatically mean better performance in every situation. Water exposure, freezing, chemicals, reinforcement, and workmanship also affect durability. During site inspections, I check the delivery ticket against the structural drawings. Small label differences can change the required mix.
Local standards may use different formats. Some systems show one strength number, while others include exposure or consistency information. Never interpret a grade without checking the governing specification. I have seen labels read too quickly. That mistake can create expensive confusion. The rating also describes tested concrete, not necessarily the finished structure. Poor vibration, early drying, or weak sampling can reduce actual results. Ask whether the result came from cubes or cylinders, and confirm the testing age. The label is useful evidence, but context gives it meaning.
Reading Compressive Strength Ratings and Units

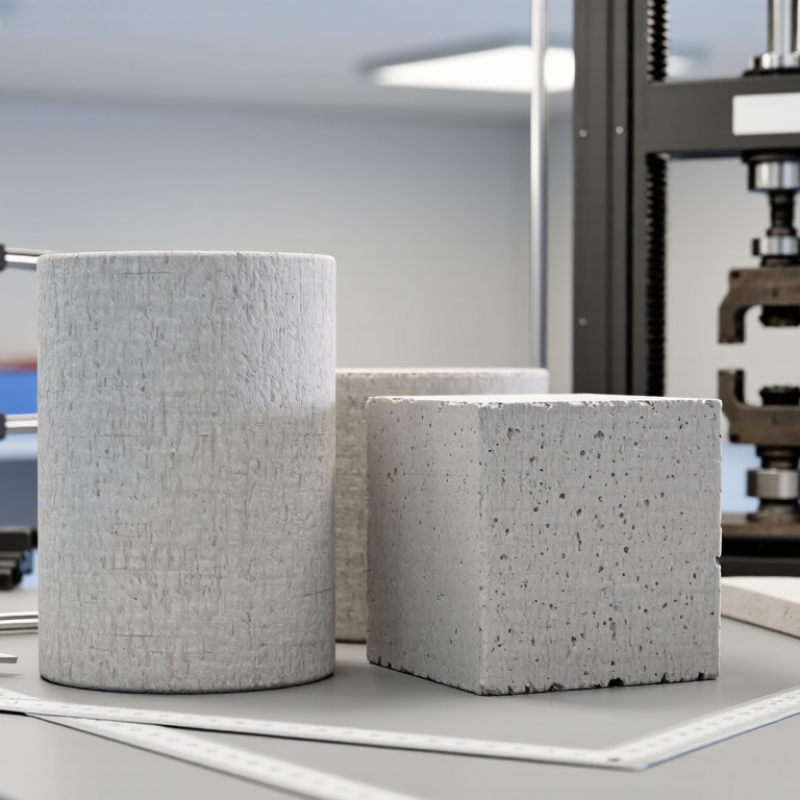

A concrete grade describes its specified compressive strength, usually measured after 28 days. In EN 206, C25/30 means 25 MPa cylinder strength and 30 MPa cube strength. The first number is not interchangeable with the second. ACI 318 expresses strength as f′c, commonly in psi or MPa. Always check the testing method behind the rating.
A 1 MPa value equals about 145 psi. Therefore, 30 MPa is approximately 4,350 psi. These units describe pressure, not the total load a column can carry. Member size, reinforcement, curing, and load duration also matter. ASTM C39 specifies compression testing for cylindrical specimens, while cube testing follows different standards. The Global Cement and Concrete Association reports that roughly 14 billion cubic metres of concrete are produced globally each year. That scale makes consistent strength notation essential, but site results still vary.
Tips: Check the project standard, test age, specimen shape, and unit system before comparing grades. Do not convert C25/30 into “30 MPa concrete” without noting the cylinder value. Field records can reveal weak curing or sampling errors. A printed rating looks exact, yet real performance is never perfectly uniform. That uncertainty deserves attention.
Comparing Standard Concrete Grades by Application
Concrete grades describe expected compressive strength, usually measured in MPa after 28 days. A designation such as C20/25 may show cylinder and cube strengths under a specific standard. The notation is not universal, so check the project specification before comparing numbers. Testing methods and curing conditions can change the result.
Lower grades, such as C10/15 or C16/20, often suit blinding concrete, simple paths, and non-structural filling. They are not automatically suitable for foundations. C20/25 is commonly selected for domestic slabs, light foundations, and small retaining elements when structural calculations permit it. C25/30 or C30/37 may serve reinforced slabs, driveways, beams, and columns with higher loads. Industrial floors and heavily loaded structures may require stronger grades, but strength alone does not solve every durability problem.
Moisture matters too. A strong mix can still perform poorly if workers add water on site or remove formwork too early. Keep it damp during early curing. That detail is easy to miss. Exposure to salt, freezing, chemicals, or constant water may require a specific durability class, cover depth, and cement content.
I have seen specifications focus heavily on MPa while overlooking drainage and curing. That is a useful warning, though not a complete rule.
Engineers should confirm the grade, reinforcement, exposure conditions, and local testing requirements before placement. A concrete label is only the starting point.
